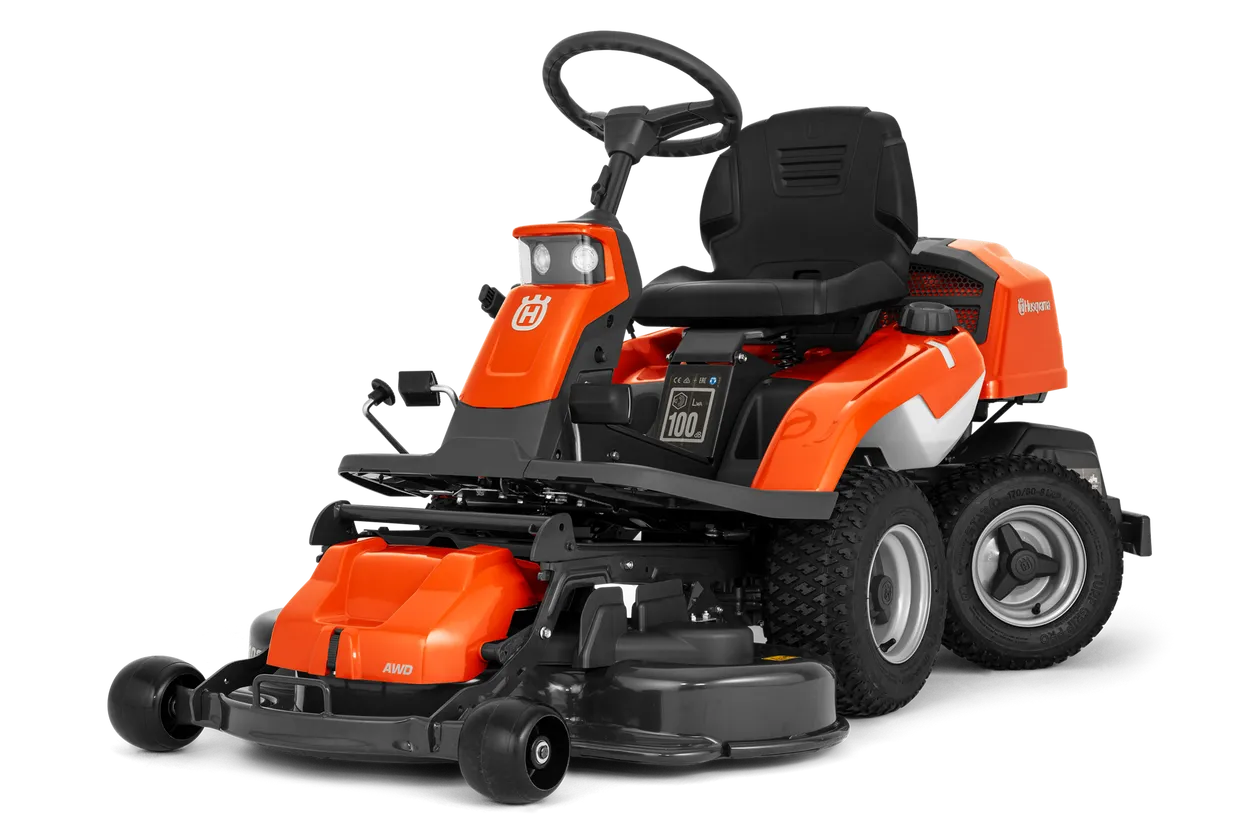

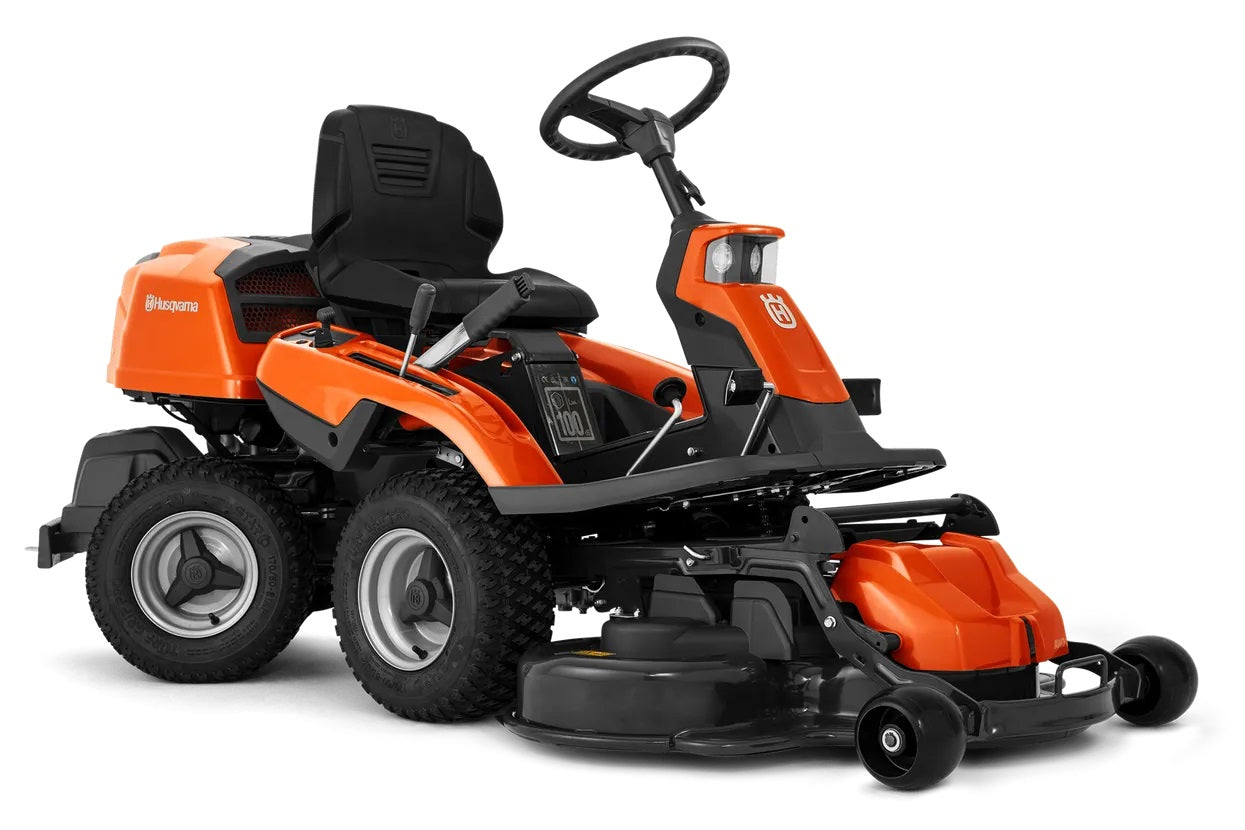

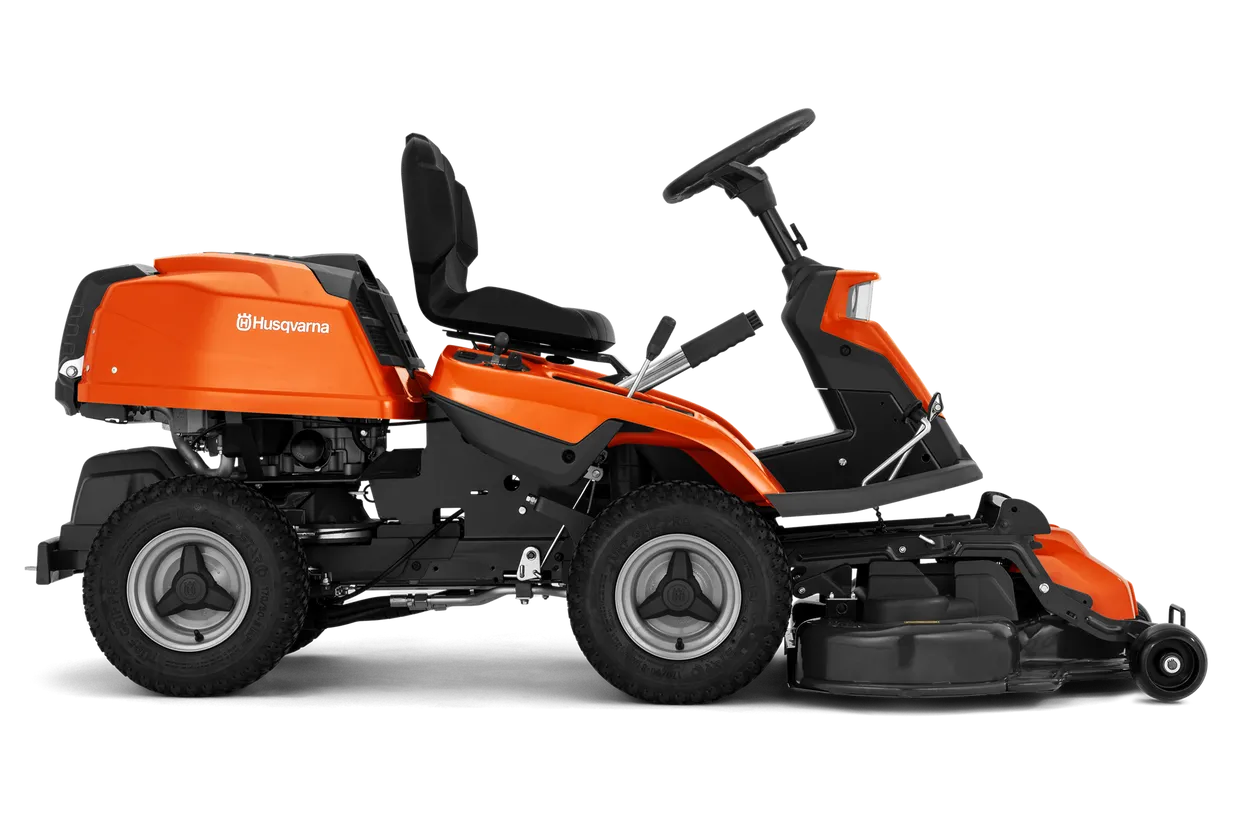

HUSQVARNA R 216T AWD
HUSQVARNA R 216T AWD
Efficient versatility and control. This All-Wheel-Drive ride-on lawn mower is ideal for taking care of larger, more challenging lawns. Husqvarna R 216T AWD can be fitted with a 94 cm or 103 cm combi cutting deck for optional BioClip® mulching or rear ejection. All-Wheel-Drive provides traction on slippery, sloping ground, while articulated steering enables tight turns. Adjustable steering wheel and LED lights adds to the premium user experience.
Pivoting rear axle
The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces.
Adjustable steering wheel
For greater ergonomics and comfort a telescopic steering column lets the steering wheel height to be adjusted.
Hour meter
Helps you having control over service and maintenance intervals.
Four large wheels
16-inch wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces.
Automatic blade engagement
The blades are engaged automatically, when you lower the cutting deck.
Transparent fuel tank
Large, transparent fuel tank makes it easy to check the fuel level.
Three-blade cutting deck
The three-blade cutting deck offers first-class trimming on both left and right side and gives the same uncut circle diameter regardless of direction.
Front-mounted cutting deck
Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc.
Pedal-operated hydrostatic transmission
Speed and direction are managed by pedals, which lets you keep both hands on the steering wheel, for optimum driving control.
Easy-access cutting height lever
The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.
Engine behind driver
Thanks to the rear-mounted engine, you get better overview of the mowing and less noise and emissions in the driver’s area.
Storage compartment
The open left-hand storage is easy to access while mowing.
Bottle holder
Convenient bottle holder for refreshments.
External fuel cap
Thanks to the external fuel cap, you don't have to open the engine hood when taking on more fuel. The extra wide fuel tank opening makes refueling even easier.
Combi cutting deck
The Combi cutting deck offers the versatility of two different cutting systems. Choose between BioClip® for lawn fertilisation and rear ejection for efficient mowing on areas with higher and rougher grass.
Unique articulated steering
The unique articulated steering system allows the rear pair of wheels to swing in underneath the machine. The result is superior manoeuvrability with a minimum turning radius at full lock.
Comfortable driver's position
With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low gravity centre contributes to extra good traction as well as a comfortable 'sit-in' feeling for the user.
Combi cutting deck with BioClip® (mulching)
BioClip® (mulching) provides perhaps the best cutting result on the market on frequently cut areas. The grass is cut into fine pieces that quickly turn into fertiliser.
LED head lights
LED lights for improved visibility and enlarged lighted area in darker conditions.
Easy access
The tilting hood and easy-access servicing points make maintenance and servicing easy.
Easy-access controls
Controls are easy accessible and designed for optimum user comfort.
Turn key start
Easy to get operating under any wetather conditions. No choking needed, just turn the key and go.
Versatile usage
A wide range of cutting decks and accessories makes our Riders exceptionally versatile, all year round.
All-Wheel-Drive (AWD)
All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. AWD automatically adjusts the traction on all wheels depending on situation and ground condition.
Service position
Service position on the cutting deck facilitates cleaning and service.
Husqvarna Connect
With the smart Husqvarna Connect app, you’ll have easy access to helpful tips, manuals and spare part recommendations. For your connected Bluetooth equipment, the app also provides additional information such as runtime and charging status as well as maintenance and service needs. The app can be downloaded, free of charge, from App Store or Google Play.
Engine |
R216TAWD RIDER
Art no: 970 54 24‑01
|
Power/fuel type | Gasoline |
---|---|
Net power at preset rpm Energy | 12 kW |
Motor/engine manufacturer | Husqvarna |
Engine name | HV 586AE |
Cylinder displacement | 586 cm³ |
Cylinders | 2 |
Engine cooling | Air |
Engine lubrication type | Splash with pressure filtration |
Oil filter | Yes |
Emission | |
Exhaust emissions (CO2 EU V)
|
778 g/kWh |
Battery | |
Battery capacity | 24 Ah |
Battery type | Lead-Acid |
Battery pack weight | 7.2 kg |
Battery manufacturer | Global |
Cutting deck | |
Uncut circle | 30 cm |
Cutting width, min | 94 cm |
Cutting width, max | 103 cm |
Cutting height min | 25 mm |
Cutting height max | 75 mm |
Blade engagement | Automatic |
Dimensions | |
Tyre dimensions, front | 170/60-8 |
Tyre dimensions, rear | 170/60-8 |
Wheelbase | 89 cm |
Ground clearance | 85 mm |
Base machine, length | 194 cm |
Base machine, width | 88 cm |
Base machine, height | 113 cm |
Gross weight towed
|
110 kg |
Weight (excl. cutting equipment) | 225 kg |
Drive system | |
PTO (Power Take Off) | Belt Drive |
Transmission type | Hydrostatic |
Drive method | Dual pedal-operation |
Speed forward max | 9 km/h |
Speed reverse max | 3.7 mph |
Speed reverse max | 6 km/h |
Equipment | |
Seat suspension | Yes |
Seat type | Comfort |
Hour meter type | Digital |
Seat material | PU |
Seat back height | Medium |
Foldable seat | Yes |
Steering wheel type | Ergonomic |
Parking brake, type | Disc |
Vibration | |
Vibration level steering wheel | 0.29 m/s² |
Vibration level seat | 1.9 m/s² |
Sound and Noise | |
Sound pressure level at operators ear | 85.9 dB(A) |
Sound power level, guaranteed (LWA) | 99 dB(A) |
Sound power level, measured | 98.1 dB(A) |
