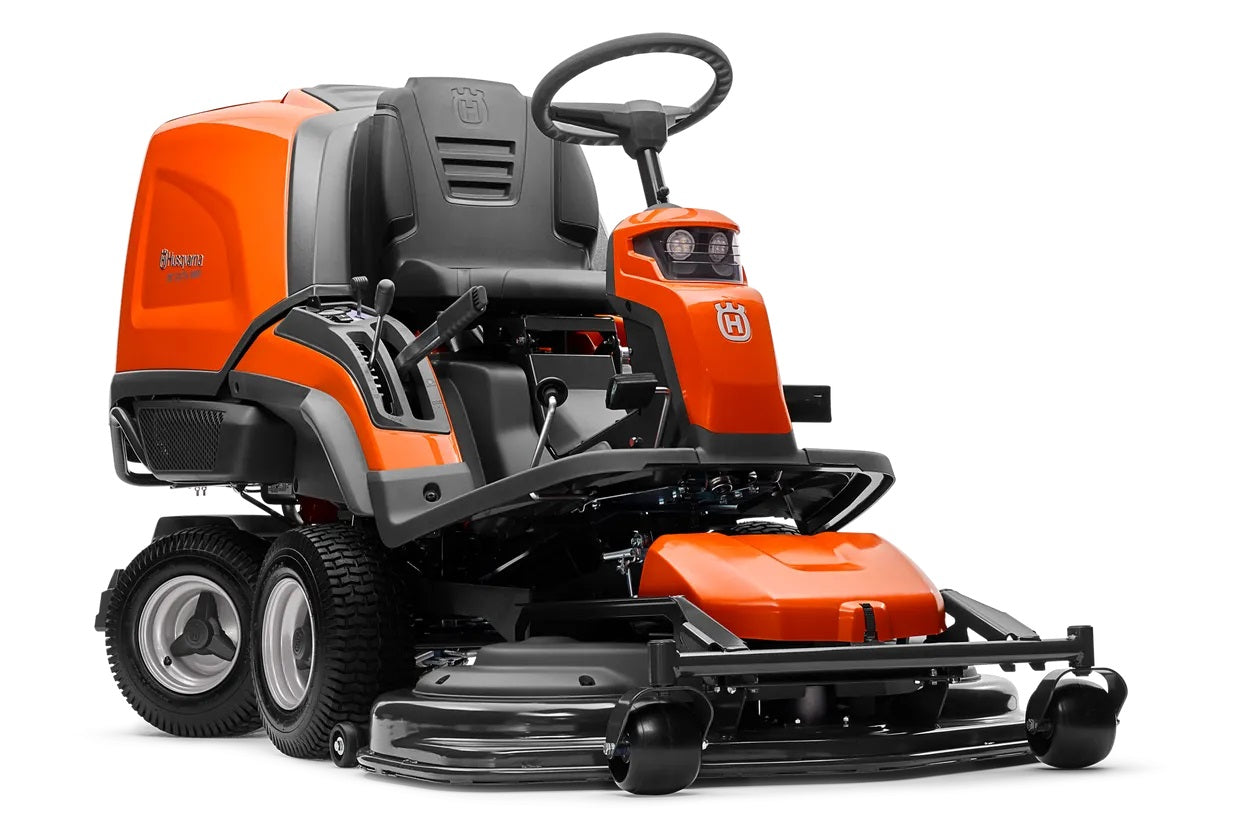

Husqvarna RC 320Ts AWD
Husqvarna RC 320Ts AWD
Designed for homeowners, RC 320Ts AWD Rider offers durable effectiveness, versatility and ease of use though innovative design. Its unique, non-clogging collection system feeds clippings straight from the front-mounted cutting deck to the 300 l bag. Automatic compaction increases run time between emptying, so you get more done. Articulated powered steering allows easy tight turns for superior manoeuvrability. All Wheel Drive means superior power and traction in all conditions. Cutting deck servicing and cleaning is tool-free, thanks to the unique 90° service position. Unbeaten area coverage and huge collection capacity make this a truly worthwhile investment for larger gardens.
Non-collecting mode
Easy switch between collecting and non-collecting mode by just pushing a button. You don't have to leave the driver's seat.
Attachment frame
Easy to shift between cutting decks and front-mounted attachments, such as broom, flail mower, snow blade and snow thrower.
Floating cutting deck
The floating cutting deck follows the contours of the ground, which reduces the risk of scalping the lawn.
Pivoting rear axle
The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces.
Four large wheels
Large wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces.
Easy-access controls
Controls are easy accessible and designed for optimum user comfort.
Hour meter with service minder
Indicates when it's time to service your tractor.
Power-assisted steering
Power-assisted steering makes driving less strenuous and more enjoyable.
Automatic blade engagement
The blades are engaged automatically, when you lower the cutting deck.
Pedal-operated hydrostatic transmission
Speed and direction are managed by pedals, which lets you keep both hands on the steering wheel, for optimum driving control.
Comfortable driver's position
With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low gravity centre contributes to extra good traction as well as a comfortable 'sit-in' feeling for the user.
Easy-access cutting height lever
The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.
Articulated steering
The articulated steering gives excellent manoeuvrability and facilitates driving around obstacles such as trees and bushes.
External fuel cap
Thanks to the external fuel cap, you don't have to open the engine hood when taking on more fuel. The extra wide fuel tank opening makes refueling even easier.
Turn key start
Easy to get operating under any wetather conditions. No choking needed, just turn the key and go.
Front-mounted cutting deck
Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc.
Pivoting support wheels
The cutting deck is equipped with pivoting wheels for extra smooth operation when making turns. The wheels also prevent damages to the lawn surface.
All-Wheel-Drive (AWD)
All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. AWD automatically adjusts the traction on all wheels depending on situation and ground condition.
Easy-access service points
The tilting hood and easy-access servicing points make maintenance and servicing easy.
Service position
Service position on the cutting deck facilitates cleaning and service.
Empty collector from seat
The integrated collector is easily emptied from the driver's seat.
Transparent fuel tank
Large, transparent fuel tank makes it easy to check the fuel level.
LED headlights
Gives over 50% larger lighted area compared to traditional incandescent lights. For safer operation in darker conditions.
12V socket outlet
Makes it possible to plug in extra electric equipment, charge your cellular phone etc.
Engine behind driver
Thanks to the rear-mounted engine, you get better overview of the mowing and less noise and emissions in the driver’s area.
ACTech
Non-clog collection. Compacting grass in collector, meaning bigger area coverage. The efficient collection leaves a clean lawn as a result.
Engine |
RC 320TsAWD RIDER
Art no: 970 62 12‑01
|
Power/fuel type | Gasoline |
---|---|
Net power at preset rpm Energy | 12.7 kW |
Motor/engine manufacturer | Husqvarna |
Engine name | HV 635AE |
Cylinder displacement | 635 cm³ |
Cylinders | 2 |
Engine cooling | Air |
Engine lubrication type | Pressure with Oilfilter |
Oil filter | Yes |
Emission | |
Exhaust emissions (CO2 EU V)
|
850 g/kWh |
Battery | |
Battery capacity | 5.5 Ah |
Battery type | Lithium Ion |
Battery pack weight | 1.18 kg |
Battery manufacturer | BMZ |
Cutting deck | |
Uncut circle | 60 cm |
Cutting width, min | 103 cm |
Cutting width, max | 112 cm |
Cutting height min | 25 mm |
Cutting height max | 75 mm |
Blade engagement | Automatic |
Collector volume | 300 l |
Dimensions | |
Tyre dimensions, front | 16x6,5-8 |
Tyre dimensions, rear | 16x6,5-8 |
Wheelbase | 90.3 cm |
Ground clearance | 90 mm |
Base machine, length | 208.9 cm |
Base machine, width | 103 cm |
Base machine, height | 128.4 cm |
Gross weight towed
|
125 kg |
Weight (excl. cutting equipment) | 327 kg |
Drive system | |
PTO (Power Take Off) | Belt Drive |
Transmission type | Hydrostatic |
Drive method | Dual pedal-operation |
Speed forward max | 8 km/h |
Speed reverse max | 4.3 mph |
Speed reverse max | 7 km/h |
Equipment | |
Seat suspension | Yes |
Hour meter type | Digital |
Seat material | Vinyl |
Seat back height | High |
Foldable seat | Yes |
Parking brake, type | Disc |
Vibration | |
Vibration level steering wheel | 2.96 m/s² |
Vibration level seat | 0.4 m/s² |
Sound and Noise | |
Sound pressure level at operators ear | 85 dB(A) |
Sound power level, guaranteed (LWA) | 100 dB(A) |
Sound power level, measured | 99 dB(A) |
